Layer of Protection Analysis

Layer of Protection Analysis (LOPA) is a risk management technique used in the process industry to assess and control risks associated with hazardous processes. It is a semi-quantitative tool used to evaluate the risk of a specific scenario and determine if existing safety measures are adequate or if additional layers of protection are needed. LOPA focuses on identifying initiating events that could lead to a hazardous incident and the existing safeguards that prevent these events from turning into accidents. It helps to quantify the probability of a hazardous event occurring and assesses the effectiveness of current safety systems and procedures in mitigating these risks.

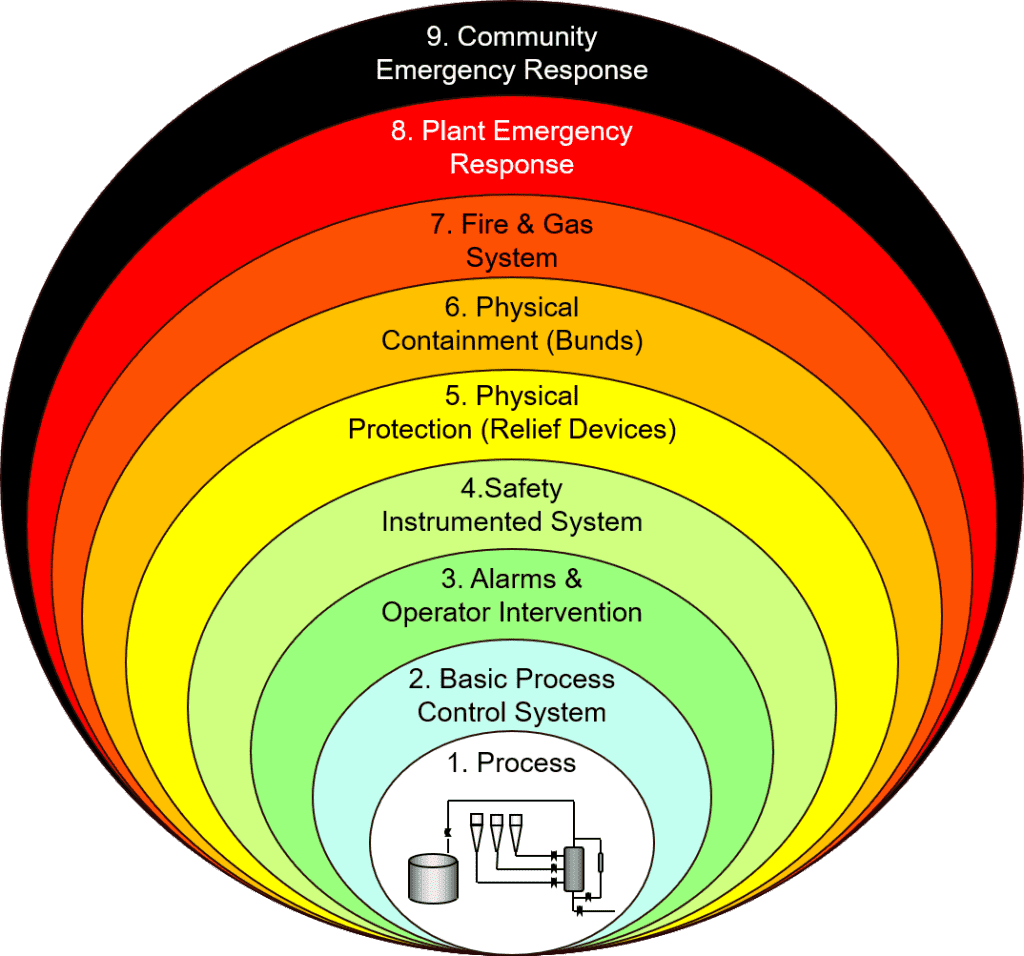

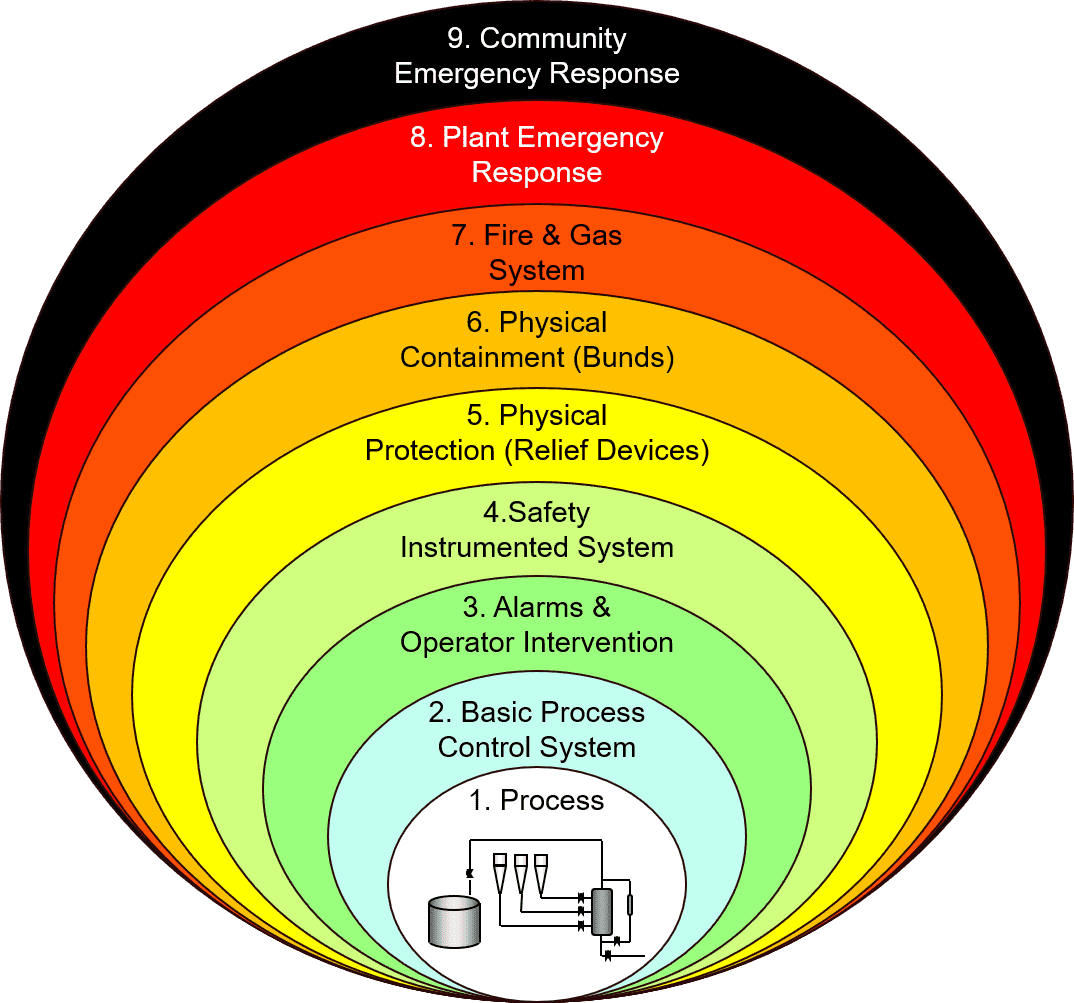

The LOPA process involves breaking down complex processes into more manageable scenarios, each with a potential initiating event, consequences, and existing protection layers. Each layer of protection, such as safety instruments, alarms, relief valves, or human intervention, is evaluated for its reliability and effectiveness in preventing the scenario from escalating. This analysis allows for a systematic evaluation of the risk reduction contributed by each layer and identifies any gaps in the safety defenses.

The aim is to ensure that multiple independent layers of protection are in place to reduce the risk of a hazardous event to an acceptable level.
A key aspect of LOPA is its ability to provide a clear and structured approach to decision-making regarding safety investments. By quantifying the risks and the effectiveness of existing safety measures, LOPA assists in prioritizing safety improvements and justifying the need for additional safety systems or procedural changes. It also provides a rational basis for decisions on safety integrity levels (SIL) for safety instrumented systems (SIS), aligning them with the organization’s risk tolerance levels.

process industryImplementing Layer of Protection Analysis (LOPA) in the process industry involves several key steps:

Scoping and Scenario Identification: Define the scope of the LOPA study and identify specific process scenarios that warrant analysis. This typically involves reviewing existing process hazard analyses, such as HAZOP studies, to select scenarios with significant risk.

Initiating Event Analysis: For each scenario, identify the initiating event or cause that could lead to a hazardous incident. This includes evaluating the frequency of the initiating event occurring.

Consequence Analysis: Determine the potential consequences of each scenario if the initiating event occurs. This includes assessing the severity of possible outcomes, such as releases, fires, or explosions.

Identification of Existing Safety Layers: Identify and evaluate existing independent protection layers (IPLs) that are in place to prevent the scenario from occurring or mitigate its consequences. This includes safety instruments, alarms, relief valves, and procedural controls.

Risk Quantification: Quantify the risk for each scenario by considering the likelihood of the initiating event and the effectiveness of existing safety layers. This involves calculating the probability of the scenario occurring despite the IPLs.

Gap Analysis and Additional Safeguards: If the risk exceeds acceptable levels, identify gaps in existing safety layers and recommend additional safeguards or IPLs to reduce the risk to an acceptable level.

Documentation and Reporting: Document the LOPA study process, findings, and recommendations in a comprehensive report for review and implementation.

Action Plan Development: Develop an action plan to implement the recommended additional safety measures. This includes assigning responsibilities, setting timelines, and allocating resources.

Review and Update: Regularly review and update the LOPA study to reflect changes in processes, equipment, regulations, or new information about hazards.

Training and Communication: Communicate the results of the LOPA study to relevant personnel and provide training on the implementation of new safety measures and the importance of maintaining existing IPLs.

Why Perform Layer of Protection Analysis?

Performing Layer of Protection Analysis (LOPA) is crucial for achieving a deeper and more quantitative understanding of risk levels associated with hazardous processes. LOPA helps in systematically evaluating potential incident scenarios by identifying and assessing the effectiveness of existing safety layers and determining if additional measures are needed. This methodical approach is essential for bridging the gap between qualitative risk assessments and more complex quantitative methods, providing a clear, understandable basis for decision-making regarding safety investments. By quantifying risks and the reliability of safety systems, LOPA guides organizations in prioritizing safety improvements, ensuring that resources are effectively allocated to mitigate the most significant risks. Furthermore, LOPA supports regulatory compliance, helping facilities to adhere to industry standards and enhance overall safety management practices. In essence, LOPA is a vital tool for enhancing the safety and integrity of operations in the high-stakes environment of the process industry.

Why Work with Prime Process Safety Center

  • Expertise and Experience: Our team brings a wealth of expertise and experience in conducting Layer of Protection Analysis (LOPA) studies, ensuring thorough and reliable assessments for your process safety needs.
  • Customized Approach: We tailor our LOPA studies to fit the specific context and requirements of your facility, ensuring that all relevant hazards and safety layers are accurately assessed.
  • In-Depth Risk Analysis: Our approach provides a detailed analysis of potential risks, evaluating the effectiveness of existing safety layers and identifying where additional measures are needed.
  • Actionable Recommendations: We offer clear, actionable recommendations for enhancing safety layers based on the findings of our LOPA study, helping you to prioritize and implement effective safety improvements.
  • Regulatory Compliance: Our LOPA studies are conducted in line with industry standards and regulatory requirements, aiding in your facility’s compliance and risk management efforts.
  • Enhanced Safety Management: By identifying potential safety gaps and suggesting improvements, our LOPA studies contribute to a stronger overall safety management system within your organization.
  • Quantitative Risk Assessment: Our expertise allows for precise quantification of risks, providing a more objective basis for safety decision-making and investments.
  • Ongoing Support and Consultation: We offer continued support and consultation beyond the initial LOPA study, ensuring that you have the guidance needed to maintain and improve safety measures.
  • Training and Education: We provide training and education sessions based on our LOPA findings to enhance your team’s understanding and capability in managing process safety risks.
  • Commitment to Safety Excellence: Our commitment to safety excellence ensures that we stay abreast of the latest developments in process safety, offering you the most up-to-date and effective LOPA study services.


1. What is Layer of Protection Analysis (LOPA)?

LOPA is a risk management tool used to assess and reduce process safety risks by evaluating the effectiveness of existing protective layers and identifying the need for additional safety measures.

2. Why is LOPA important in process safety?

LOPA helps in understanding the likelihood of hazardous events and the effectiveness of safety systems, providing a structured approach to making safety-related decisions and ensuring compliance with industry standards.

3. How does LOPA differ from other risk assessment methods?

LOPA provides a semi-quantitative middle ground between qualitative methods like HAZOP and more complex quantitative risk assessments, offering detailed yet understandable risk insights.

4. What are ‘layers of protection’ in LOPA?

Layers of protection refer to the various safety barriers, controls, and systems in place to prevent or mitigate the consequences of hazardous events, such as alarms, interlocks, and emergency response procedures.

5. When should a LOPA study be conducted?

A LOPA study is typically conducted after a preliminary hazard analysis, like a HAZOP, when further detailed risk evaluation is needed to make informed safety decisions.

6. Who should perform a LOPA study?

LOPA studies should be conducted by professionals with expertise in process safety, risk analysis, and the specific operations of the facility.

7. What is involved in a LOPA study?

A LOPA study involves identifying potential hazardous scenarios, determining the likelihood of these scenarios, evaluating existing protective layers, and recommending additional safety measures if needed.

8. How do you determine the effectiveness of safety layers in LOPA?

The effectiveness is evaluated based on factors like reliability, independence, and auditability of each layer against the specific hazard scenarios.

9. What outcomes can be expected from a LOPA study?

Outcomes include a better understanding of risk levels, identification of areas where safety can be improved, and actionable recommendations for enhancing process safety.

10. How does LOPA contribute to regulatory compliance?

By systematically assessing and managing risks, LOPA helps ensure compliance with safety regulations and standards, reducing the likelihood of accidents and potential liabilities.
