Breakdown Voltage Test – Solid Materials

Breakdown voltage is the minimum voltage that causes a portion of an insulator to experience electrical breakdown and become electrically conductive. All dielectric materials have a maximum applied field at which they fail and begin to conduct charge, called the dielectric breakdown strength (or alternatively dielectric breakdown voltage). The breakdown occurs either by movement of charge carriers within the dielectric material, result of dielectric and/or Joule heating or compression by electrostatic forces. This breakdown is often accompanied by a sudden and substantial increase in conductivity, resulting in the formation of an electric arc or breakdown path through the insulator.


The test applies to solid insulating materials. The material to be tested is conditioned at a relative humidity of 25% and 60% and a temperature of 23ᣞC for at least 12 hours. The cylindrical electrode is brought into firm contact with the surface of the material sitting on a grounded metal plate.

Voltage to the electrode is increased gradually until the insulating property of the material breaks down and a large current passes through the sample to the grounded plate. The voltage at this point is the breakdown voltage. The testing is repeated at least 5 times at different parts of the surface of the material and on the opposite sides of the material.

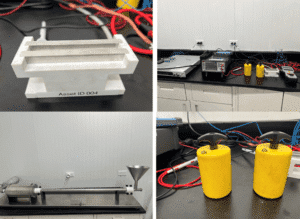

Breakdown Voltage Test Set up

Applicable Standard

Breakdown voltage testing is performed in accordance with IEC 60243-1, ASTM D3755-20 and Section 9.2 of IEC 61340-4-4

Data interpretation

In the presence of prolific charge generating mechanisms (e.g. pneumatic transfer of powders, charge spraying in the powder coating process) very high levels of surface charge can be generated on an insulating sheet or layer with earthed metal backing. If the breakdown strength of the layer is sufficient to withstand the large field strength in the layer, surface charge densities of the order of 300 μC/m2 enable the discharge to change from a brush discharge into a propagating brush discharge. A propagating brush discharge can release a lot of energy. It is, therefore, capable of igniting almost all flammable gases, vapors and powders and can cause severe electrostatic shocks. By knowing the breakdown voltage, appropriate measures can be put in place to avoid propagating brush discharges in an explosive atmosphere.

When to perform Breakdown Voltage

Breakdown voltage is applied to all insulating materials as well as Flexible Intermediate Bulk Containers (FIBC’s), Sheets, films, fabrics, foils, and coatings. Understanding and specifying the breakdown voltage of insulating materials is crucial in ensuring the reliable and safe operation of electrical equipment, preventing electrical faults or failures due to inadequate insulation performance under high-voltage conditions.
