COMBUSTIBLE DUST HAZARDS IN COAL HANDLING FACILITIES

Coal handling facilities, including coal mines, processing plants, and power generation facilities, play a crucial role in the energy sector and various industrial applications. However, these facilities are inherently hazardous due to the presence of combustible coal dust. This blog post explores the nature of combustible dust hazards in coal handling facilities, identifies the conditions that lead to dust explosions and outlines best practices for preventing and mitigating these hazards.

UNDERSTANDING COMBUSTIBLE COAL DUST

Combustible coal dust consists of fine particles that can ignite and explode when dispersed in air under certain conditions. In coal handling facilities, dust is generated during various mechanical operations such as mining, crushing, conveying, and storing coal. These fine particles, when suspended in the air and mixed with oxygen, create a highly flammable mixture that can lead to explosive reactions upon ignition.

THE DUST EXPLOSION PENTAGON

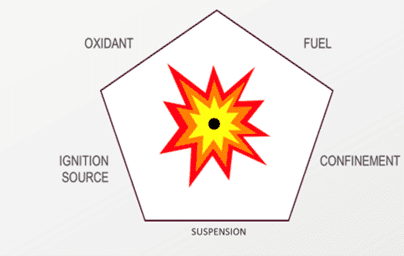

A dust explosion occurs when five key elements are present simultaneously, often referred to as the “Dust Explosion Pentagon”:

• Fuel: Combustible dust particles, such as coal dust.
• Oxygen: Present in the air.
• Ignition Source: A spark, flame, hot surface, or static electricity.
• Dispersion: Dust particles must be suspended in the air at a sufficient concentration.
• Confinement: An enclosed or semi-enclosed space where pressure can build up.

When these five elements converge, a primary explosion can occur, potentially disturbing accumulated dust and leading to more severe secondary explosions.

COMMON SOURCES OF COAL DUST IN HANDLING FACILITIES

Coal dust is generated through several common processes in coal handling facilities, including:

1. Mining Operations

• Cutting and Drilling: The process of extracting coal from underground or open-pit mines involves cutting, drilling, and blasting, which generates substantial amounts of dust.
• Loading and Hauling: Transporting coal from the mining face to the processing area, often using conveyors, trucks, or shuttle cars, can release dust into the air.

2. Crushing and Screening

• Primary and Secondary Crushers: Crushing coal into smaller pieces releases fine coal dust.
• Screening Operations: Separating coal by size generates dust as coal is moved and vibrated over screens.

3. Conveying Systems

• Belt Conveyors: The movement of coal along belt conveyors can create dust, especially at transfer points and when coal is dropped from one conveyor to another.
• Transfer Points: Dust is generated as coal is transferred between different sections of the conveying system.

4. Storage and Stockpiles

• Open Stockpiles: Wind erosion of coal stockpiles can generate significant dust.
• Stacking and Reclaiming: Dust is created when coal is piled or removed from stockpiles using equipment like stackers, reclaimers, and front-end loaders.

5. Material Handling and Transfer Points

• Chutes and Hoppers: Dust is generated when coal is loaded into or discharged from chutes and hoppers.
• Loading and Unloading: Transferring coal to and from transport vehicles such as trucks, trains, or ships can release dust.

6. Processing Plants

• Coal Preparation and Washing: Processes such as crushing, screening, and washing in coal preparation plants can generate dust.
• Coal Dryers: Drying coal in thermal dryers can produce dust, especially if the drying process involves the agitation of coal particles.

7. Transportation

• Rail and Truck Transport: Dust can be generated during the loading, transport, and unloading of coal via railcars or trucks.
• Ship Loading: The transfer of coal to ships can release dust into the air.

8. Spillage and Leakage

• Conveyor Spillage: Dust is created when coal spills from conveyors due to overloading or misalignment.
• Equipment Leakage: Dust can escape from leaks in conveyor systems, crushers, and other handling equipment.

9. Environmental Factors

• Wind: Wind can pick up and disperse loose coal dust from open areas, stockpiles, and roadways within the facility.
• Dry Conditions: Lack of moisture can exacerbate dust generation and dispersion.

COAL DUST EXPLOSION CASE STUDIES: LESSONS FROM PAST INCIDENTS

Upper Big Branch Mine Explosion (2010)

In 2010, a catastrophic explosion at the Upper Big Branch Mine in West Virginia resulted in 29 fatalities. The incident was caused by a methane explosion that ignited accumulated coal dust, leading to a massive secondary explosion. This tragedy highlighted the critical need for effective dust control measures and rigorous safety protocols in coal mines.

Ravensworth Coal Preparation Plant Explosion (2014)

In 2014, an explosion at the Ravensworth Coal Preparation Plant in Australia was attributed to the ignition of coal dust during maintenance activities. The incident underscored the importance of proper dust management, especially during maintenance and repair work.

FACTORS INCREASING EXPLOSION RISK

Several factors can exacerbate the risk of dust explosions in coal-handling facilities:

1. Dust Accumulation: Regular accumulation of dust on surfaces such as beams, ledges, and equipment can lead to secondary explosions.
2. Inadequate Housekeeping: Poor cleaning practices allow dust to build up, increasing the risk of ignition.
3. Ignition Sources: Inadequately maintained equipment, hot surfaces, friction sparks, and static electricity are common ignition sources.
4. Poor Ventilation: Inadequate dust collection and ventilation systems lead to high concentrations of airborne dust.
5. Confinement: Enclosed spaces, such as silos and processing equipment, can confine dust, increasing explosion severity.

REGULATORY FRAMEWORK

Regulatory bodies have established guidelines and standards to address the risks associated with combustible dust:

• Occupational Safety and Health Administration (OSHA): OSHA provides guidance on combustible dust hazards through the National Emphasis Program (NEP) and enforces standards related to general housekeeping, ventilation, and electrical systems.
• Mine Safety and Health Administration (MSHA): MSHA regulates safety in coal mines and has specific standards for controlling coal dust to prevent explosions.
• National Fire Protection Association (NFPA): NFPA standards, particularly NFPA 654 (Standard for the Prevention of Fire and Dust Explosions from the Manufacturing, Processing, and Handling of Combustible Particulate Solids) and NFPA 120 (Standard for Fire Prevention and Control in Coal Mines), offer detailed guidelines for managing dust hazards.
• International Electrotechnical Commission (IEC): IEC standards, particularly IEC 60079 (Explosive Atmospheres), provide guidelines for equipment and systems used in explosive atmospheres, including coal dust environments.

MITIGATION STRATEGIES

Mitigating the risk of dust explosions in coal handling facilities requires a comprehensive approach encompassing engineering controls, administrative controls, and safe work practices.

Engineering Controls

1. Dust Collection Systems: Install high-efficiency dust collection systems to capture dust at the source. Regular maintenance and inspection of these systems are crucial to ensure their effectiveness.
2. Ventilation: Ensure proper ventilation to dilute and remove airborne dust. Local exhaust ventilation systems can effectively capture dust before it disperses.
3. Explosion Venting: Implement explosion venting systems to relieve pressure in case of an explosion, minimizing structural damage.
4. Static Control: Install grounding and bonding systems to prevent static electricity buildup, a common ignition source for dust explosions.
5. Isolation: Use physical barriers or isolation systems to prevent the spread of explosions from one area to another.

Administrative Controls

1. Housekeeping: Implement stringent housekeeping practices to prevent dust accumulation on surfaces and equipment. Regular cleaning schedules and inspections should be established.
2. Training: Train employees on the hazards of combustible dust and proper safety procedures. Ensure they understand the importance of maintaining a clean and safe work environment.
3. Hazard Assessment: Conduct regular hazard assessments to identify potential dust sources and areas where dust accumulation could occur.
4. Maintenance: Regularly inspect and maintain equipment to prevent malfunctions that could generate sparks or heat, leading to ignition.
5. Emergency Planning: Develop and practice emergency response plans to ensure a quick and effective response in the event of a dust explosion.

Safe Work Practices

1. Hot Work Permits: Implement a permit system for hot work (welding, cutting, grinding) to ensure safety measures are in place to prevent ignition.
2. No Smoking Policies: Enforce strict no-smoking policies in areas where combustible dust is present.
3. Equipment Operation: Ensure equipment is operated according to manufacturer guidelines, and safety interlocks are functioning correctly.
4. Personal Protective Equipment (PPE): Provide appropriate PPE, such as flame-resistant clothing and respirators, to protect workers from dust exposure and potential explosions.

Innovative Technologies

Advancements in technology are providing new tools to manage and mitigate combustible dust hazards:

1. Dust Detection Systems: Advanced sensors and monitoring systems can detect dust levels in real-time, alerting operators to dangerous conditions before they escalate.
2. Explosion Suppression Systems: These systems can detect the initial stages of a dust explosion and release suppressant agents to extinguish the flame before it spreads.
3. Automated Housekeeping: Robotic systems and automated vacuuming equipment can perform routine cleaning tasks, reducing the risk of dust accumulation and freeing up human resources for other critical tasks.

CONCLUSION

Combustible dust hazards in coal handling facilities pose significant risks, but with a comprehensive and proactive approach, these risks can be effectively managed. Implementing engineering controls, administrative measures, and safe work practices is essential to creating a safe and productive work environment. By staying informed about regulatory requirements, investing in innovative technologies, and fostering a culture of safety, coal handling facilities can mitigate the dangers of combustible dust and protect their most valuable asset: their workers.
