Introduction
Chemical processes in industrial settings come with inherent risks, particularly when dealing with reactive chemicals. Among the critical safety measures employed to mitigate these risks are pressure relief systems, including venting mechanisms designed to handle overpressure scenarios. Vent sizing, a crucial aspect of these systems, varies significantly depending on whether it is intended to manage deflagration or runaway reaction overpressure. This article delves into the essential differences between vent sizing methods for these two types of overpressure events, exploring their underlying principles, methodologies, and safety implications.
Deflagration and Runaway Reaction
Both deflagration and runaway reactions involve exothermic processes that may lead to a pressure rise in a vessel. However, they have different physical mechanisms for pressure rise and consequently require different overpressure vent sizing design principles.
Deflagration
Deflagration is a type of combustion characterized by the subsonic propagation of a flame front through a reactive mixture. This process involves the rapid release of heat and the expansion of gases, resulting in a significant pressure rise. Deflagration is commonly associated with dust explosions, gas explosions, and vapor cloud explosions in industrial environments.
Key characteristics of deflagration include:
- Reaction Occurrence: The reaction occurs only in the flame front, involving a heterogeneous reaction within the thin layer of the moving flame front, connecting high-temperature burned gas from low-temperature unburned gas.
- Subsonic Flame Propagation: The flame front travels at a speed less than the speed of sound of the unreacted medium.
- Pressure Development: The pressure rise is rapid and generally far higher than that incurred by a runaway reaction.
- Energy Release: A considerable amount of energy is released, which can cause structural damage if not properly managed.
- Heat Transfer: Deflagration reactions occur so rapidly that there is barely any time for heat transfer, resulting in no heat loss to the surrounding medium or vessel walls until the reaction is complete. Consequently, the reaction is typically assumed to be adiabatic, and the adiabatic flame temperature is used to estimate the maximum pressure of the deflagration.
Runaway Reactions
Runaway reactions occur when the rate of a chemical reaction increases uncontrollably, leading to a rapid rise in temperature and pressure. These reactions are often exothermic, meaning they release heat, which further accelerates the reaction rate in a positive feedback loop. Runaway reactions can be triggered by various factors, including improper temperature control, mixing errors, or contamination.
Key characteristics of runaway reactions include:
- Reaction Mechanism: Reactions occur homogeneously throughout the entire reaction mixture, unlike deflagration, where exothermic reactions occur only in the zone of the flame front.
- Uncontrolled Reaction Rate: The reaction accelerates uncontrollably, often due to exothermic heat release.
- Thermal Runaway: The temperature rise leads to an increased reaction rate, further elevating the temperature.
- Pressure Build-Up: Rapid gas generation and temperature increase cause significant pressure rise, potentially leading to vessel rupture. However, the pressure rise rate of runaway reactions is generally less than that of deflagration.

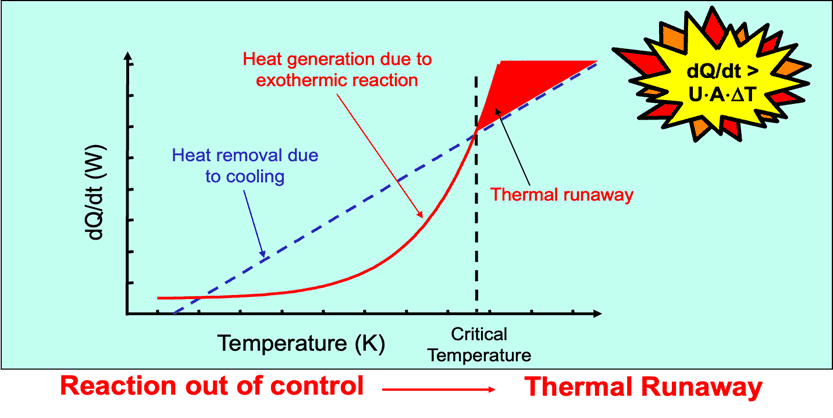

- Heat Transfer: In most situations, reaction heat can be transferred out to the cooling medium or vessel wall, so that a runaway reaction occurs when the reaction heat generation rate exceeds the heat transfer rate. Reactor heat capacity sometimes plays an important role in mitigating the severity of runaway reactions, especially for the small-scale vessel.
Vent Sizing for Deflagration
Venting for deflagration involves designing a system to safely release the pressure generated by a deflagration event, preventing structural damage to equipment and containment vessels. The primary goal is to provide a pathway for the expanding gases to escape, thereby reducing the pressure within the vessel to safe levels.
Key Considerations for Deflagration Vent Sizing
- Explosion Severity: Influenced by factors such as the type of combustible material, particle size (for dust), concentration, and the presence of turbulence. Critical parameters include the maximum pressure (Pmax) and the rate of pressure rise (Kst for dust, KG for gases).
- Vessel Characteristics: The size, shape, and strength of the vessel or enclosure play a significant role in vent sizing. The vessel’s volume (V) and its ability to withstand pressure determine the required vent area.
- Vent Area Calculation: US standards like NFPA 68 and European standards like EN 14491 provide guidelines for calculating the required vent area. The vent area (Av) is determined based on the vessel volume (V), the maximum pressure (Pmax), the reduced pressure (Pred), and the venting efficiency.
- Vent Panel Design: Vent panels or explosion relief panels must be designed to open at a predetermined pressure (Pstat). These panels should withstand environmental conditions and provide reliable operation.
- Ducting and Effluent Handling: The design can include considerations for ducting the vented gases to a safe location, minimizing the risk of secondary explosions or exposure to hazardous substances. However, ducting deflagration is not often recommended due to the potential for deflagration to detonation transition (DDT) in an elongated pipe.
Methodology for Deflagration Vent Sizing
- Determine the Explosive Properties: Conduct tests to determine the Pmax and Kst/KG values of the material.
- Evaluate the Vessel Parameters: Measure the volume (V) and determine the enclosure strength (Pes).
- Apply Standard Equations: Use equations and guidelines from standards like NFPA 68 to calculate the required vent area (Av). The Pred should not exceed the enclosure strength (Pes).
- Design and Install Vent Panels: Select appropriate vent panels that open at the Pstat and ensure they are properly installed and maintained.
- Implement Effluent Handling: Design and install ducting systems to safely direct the vented gases to a safe area.
Vent Sizing for Runaway Reactions
Venting for runaway reactions involves designing a system to manage the rapid pressure build-up resulting from an uncontrolled exothermic reaction. The goal is to relieve the pressure in a controlled manner, preventing vessel rupture and mitigating the consequences of a runaway reaction.
Key Considerations for Runaway Reaction Vent Sizing
- Reaction Kinetics: Understanding the kinetics of the reaction, including the rate of heat generation, temperature dependence, and potential for secondary reactions.
- Thermal Properties: The thermal properties of the reactants, products, and any intermediates, including specific heat capacity, thermal conductivity, heat of reaction, and vapor-liquid phase equilibrium.
- Gas Generation: The volume and rate of gas production must be quantified to design an effective venting system.
- Vessel Characteristics: The vessel’s size, shape, and pressure rating are critical. The vent area must be sufficient to handle the rapid pressure rise without exceeding the vessel’s pressure rating.
- Venting System Design: The venting system must be designed to open quickly and fully at a predetermined pressure, often involving rupture discs or pressure relief valves.
- Secondary Containment and Effluent Handling: The vented gases and reaction products must be safely contained and directed to a safe location, potentially involving scrubbers, quench tanks, or other containment systems.
Methodology for Runaway Reaction Vent Sizing
- Conduct Reaction Calorimetry Test: Use techniques like Vent Sizing Package II (VSP II) or Accelerating Rate Calorimetry (ARC) to measure the heat generation rate and identify the onset temperature of runaway reactions.
- Analyze Reaction Kinetics: Determine the kinetic parameters of the reaction, including activation energy and reaction order.
- Quantify Gas Generation: Use Vent Sizing Package II (VSP II) to measure the volume and rate of gas production under runaway conditions, if applicable.
- Evaluate Vessel Parameters: Assess the vessel’s volume, pressure rating, and maximum allowable working pressure (MAWP).
- Apply Vent Sizing Equations: Use guidelines from DIERS (Design Institute for Emergency Relief Systems) to calculate the required vent area (Av), as most runaway reactions involve two-phase venting.
- Design and Install Venting Systems: Select and install appropriate rupture discs, pressure relief valves, and other venting devices designed for runaway reaction conditions.
- Implement Secondary Containment: Design systems to handle and neutralize the vented gases and reaction products.
Comparative Analysis: Deflagration vs. Runaway Reaction Vent Sizing
While both deflagration and runaway reaction vent sizing aim to prevent catastrophic overpressure, the methods and considerations differ significantly:
Nature of the Event
- Deflagration: Involves subsonic flame propagation and rapid pressure rise due to combustion.
- Runaway Reaction: Involves uncontrolled exothermic reactions with rapid temperature and pressure increase.
Key Parameters
- Deflagration: Pmax, Kst/KG, vessel volume (V), structure, and reduced pressure (Pred).
- Runaway Reaction: Heat generation rate, reaction kinetics, gas generation rate, thermal properties, and vessel parameters.
Standards and Guidelines
- Deflagration: NFPA 68 (US) and EN 14491 (Europe) provide specific guidelines for vent sizing based on combustible material properties and vessel characteristics.
- Runaway Reaction: DIERS guidelines focus on the thermal and kinetic behavior of the reaction, including heat and gas generation rates.
Venting Devices
- Deflagration: Vent panels, explosion relief panels, and ducting systems.
- Runaway Reaction: Rupture discs, pressure relief valves, and secondary containment systems.
Pressure relief valves are generally unsuitable for deflagration venting due to their slower response time compared to explosion relief panels.
Design Objectives
- Deflagration: Provide a pathway for expanding gases to escape, reducing pressure within the vessel to safe levels.
- Runaway Reaction: Relieve pressure in a controlled manner, preventing vessel rupture and managing hazardous effluents.
Conclusion
The essential differences between vent sizing for deflagration and runaway reaction overpressure lie in the nature of the events, the key parameters considered, and the design objectives of the venting systems. Understanding these differences is crucial for designing effective pressure relief systems that ensure the safety and integrity of chemical processes. By employing appropriate experimental testing, adhering to established guidelines, and implementing robust venting systems, industries can mitigate the risks associated with overpressure events from either deflagration or runaway reactions, thereby protecting both personnel and infrastructure from potentially catastrophic incidents.
